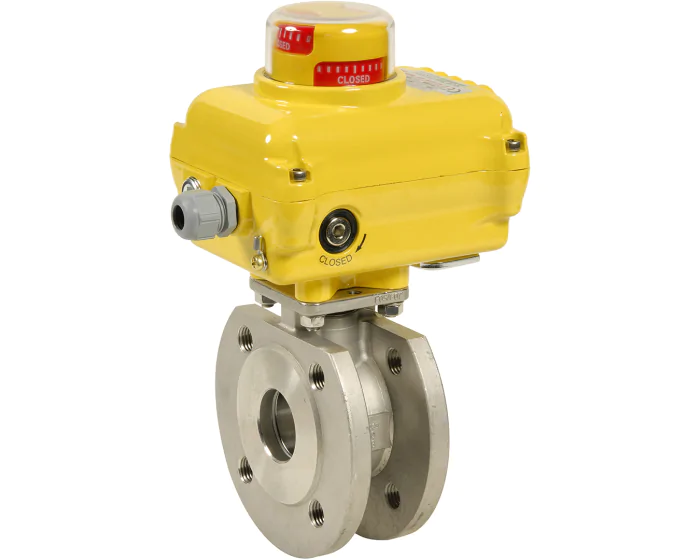

The wafer 771 XS ball valve has a CF8M (1.4408) stainless steel body and ball, PTFE seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 180°C. Installation between flanges PN16.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN100 - 4'' |
| Duty service | S2 duty service - 70% |
| Face to Face (mm) | 152.0 |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Power (W) | 40 |
| Connections | Between flanges PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 15 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 20.0 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| Ball valve design | Wafer |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 15 | 272902023010 | S1004029 |
€598.61
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 20 | 272903023010 | S1004030 |
€601.01
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 25 | 272904023010 | S1004031 |
€583.61
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 32 | 272905023010 | S1004032 |
€627.21
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 40 | 272906023010 | S1004033 |
€703.31
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 80 | 272909023130 | S1004036 |
€1,634.04
(excl. btw)
|
add to cart |
| Between flanges PN16 Stainless steel CF8M (1.4408) Full Wafer 100 | 272910023130 | S1004037 |
€1,920.06
(excl. btw)
|
add to cart |
